Tethered Airship

Tethered airships and balloons

1. System introduction

As a kind of floating platform, tethered floating system has the advantages of long-term standing in the air, heavy load and high safety. By carrying different types of optical, radar, communication and other loads, long-term and stable services can be achieved, which can be widely used in communication services, WiFi coverage, safety monitoring, disaster emergency, environmental monitoring, advertising release, various scientific carrying tests and other fields.


2. Product series

Tethered balloon

Dy-b600, dy-b700, dy-b800, dy-b1000, dy-b1200, dy-b1500, dy-b1800, dy-b2000 series.

Can be customized according to customer needs

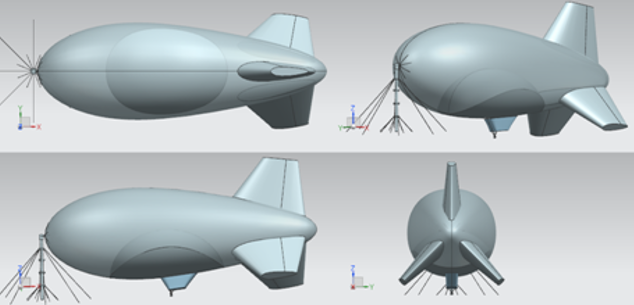

Tethered airship

Dy-a400, dy-a500, dy-a600, dy-a700, dy-a800, dy-a900, dy-a1000, dy-a1200, dy-a1500, dy-a2500, dy-a3000, dy-a3700, dy-a4000 series.

Can be customized according to customer needs



3. Performance parameters

Mooring height: 100m-3000m

Load capacity: 5kg-200kg

Load type (optional): WiFi equipment, photoelectric ball, radar, infrared monitoring equipment, environmental monitoring equipment

Other accessories (optional): solar cell, helium recovery machine, inflatable hangar, etc



Table 1 Selection of tethered balloon products (based on height and load weight)





5kg

30kg

50kg

100kg

150kg

200kg

100m

DY-B600

DY-B700

DY-B700

DY-B800

DY-B1000

DY-B1200

500m

DY-B700

DY-B700

DY-B800

DY-B1000

DY-B1200

DY-B1200

1000m

DY-B800

DY-B1000

DY-B1000

DY-B1200

DY-B1200

DY-B1500

2000m

DY-B1200

DY-B1200

DY-B1500

DY-B1500

DY-B1500

DY-B1800

3000m

DY-B1800

DY-B1800

DY-B1800

DY-B1800

DY-B2000

DY-B2000





Table 2 product selection table of tethered airship (based on height and load, the cable is photoelectric composite cable)



5kg

30kg

50kg

100kg

150kg

200kg

100m

DY-A400

DY-A400

DY-A500

DY-A500

DY-A600

DY-A700

500m

DY-A800

DY-A800

DY-A800

DY-A900

DY-A1000

DY-A1000

1000m

DY-A1200

DY-A1200

DY-A1200

DY-A1500

DY-A1500

DY-A1500

2000m

DY-A2500

DY-A2500

DY-A2500

DY-A2500

DY-A2500

DY-A3000

3000m

DY-A3700

DY-A3700

DY-A3700

DY-A4000

DY-A4000

DY-A4000





Table 3 product selection table of tethered airship (according to height and load, the cable is high strength rope)



5kg

30kg

50kg

100kg

150kg

200kg

100m

DY-A400

DY-A400

DY-A400

DY-A500

DY-A600

DY-A600

500m

DY-A500

DY-A500

DY-A500

DY-A600

DY-A700

DY-A700

1000m

DY-A600

DY-A600

DY-A600

DY-A700

DY-A800

DY-A800

2000m

DY-A900

DY-A900

DY-A900

DY-A1000

DY-A1200

DY-A1200

3000m

DY-A1200

DY-A1200

DY-A1200

DY-A1500

DY-A1500

DY-A1500





Table 4 matching table of coverage area



通信(km2

光学(km2

雷达(km2

100m

25.8

4.1

4.1

500m

644.1

102.6

102.6

1000m

2576.6

410.5

410.5

2000m

10306.4

1642.0

1642.0

3000m

23189.3

3694.5

3694.5




4. System composition

The tethered floating system includes capsule body (providing buoyancy), tethered cable (keeping the fixed height of aerostat), pod (fixing system equipment and load), control unit (pressure and buoyancy control), ground retraction and release equipment (releasing and recovering aerostat), ground measurement and control equipment, applied load and unattended alarm unit, etc.



5. Typical applications

WiFi coverage of new countryside / Smart Town / campus / key areas / major assembly venues

Safety monitoring of campus / key areas / major assembly places

Real time air and ground environmental monitoring

Earthquake / flood / fire disaster monitoring and emergency communication

Advertising and publicity

Scientific carrying test



6. Product features

Long term standing in the air, the fixed point height can be adjusted in a wide range

The system is stable and reliable for a long time

Strong carrying capacity, high stability, can carry a variety of loads at the same time

High safety of load equipment

The load is easy to install and replace



7. Physical pictures

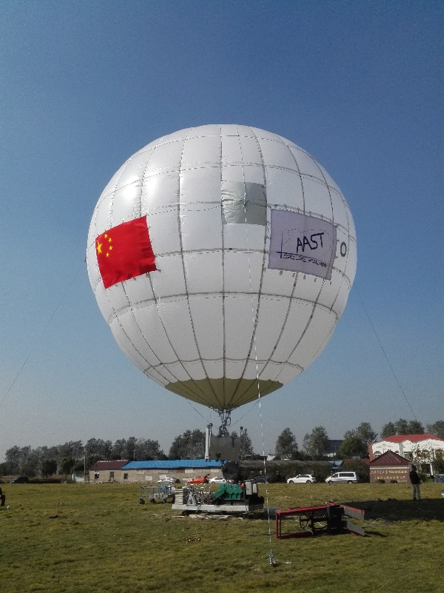

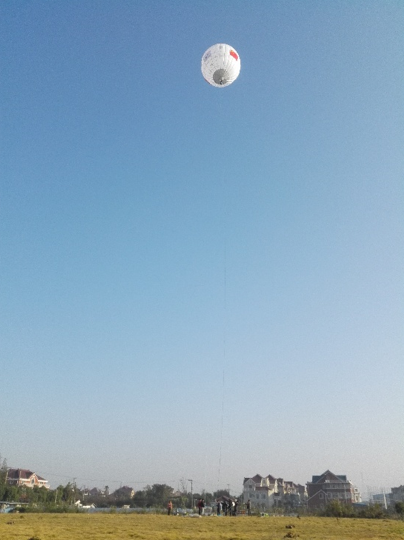

Tethered balloon

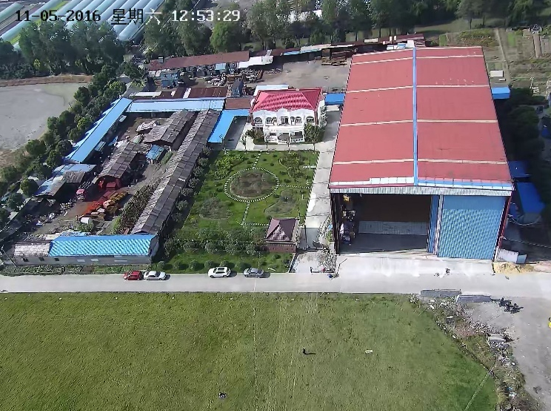

Surveillance video capture low altitude tethered balloon - wireless communication and ground monitoring balloon(DY-B700)

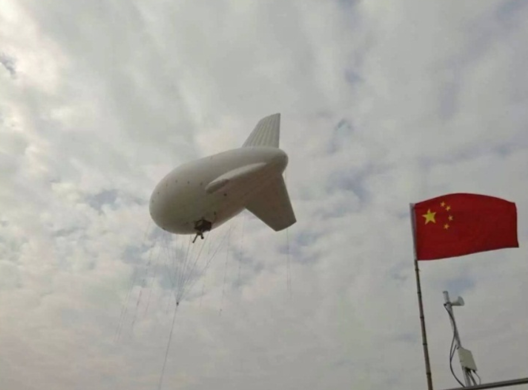

Tethered airship




Low altitude tethered airship Yueyang communication relay airship(DY-A800)
